Oil press John Smeaton
Product images of Oil press

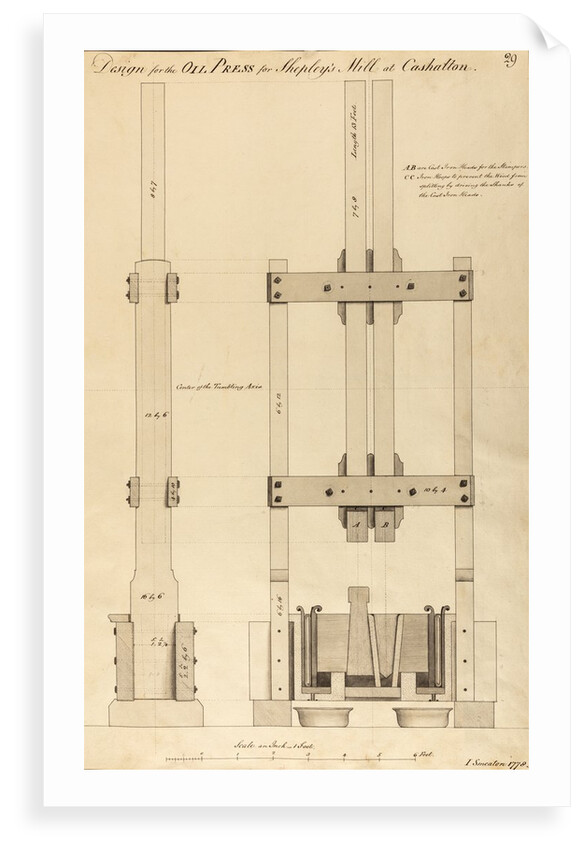

Design of the cast-iron oil press for a mill at Carshalton, with the dimensions of all parts clearly marked. As seen from the front [right as viewed] and the side [left].
In a scale of 1:12 inches per foot.
Signed and dated in the bottom right corner and inscribed ‘Design for the OIL PRESS for Shepley’s Mill at Carshalton’
Original drawing from Designs by the late John Smeaton made on various occasions in the course of his employment as a Civil Engineer from the year 175[?] to 179[?], Volume 2. Containing Designs for Mills and Hydraulic Engines. Collected and arranged by John Farey, 1821.
John Smeaton (1724-1792) was a British civil engineer, he was elected a Fellow of the Royal Society in 1753.
John Farey (1766-1826) was a British geologist and surveyor, he worked on the published reports of John Smeaton’s work between 1809 and 1812.
- Image reference: RS-17728
- ©The Royal Society
More by the artist John Smeaton.
Explore the collection Engineering and architectural prints and drawings.
