Boring mill John Smeaton
Product images of Boring mill

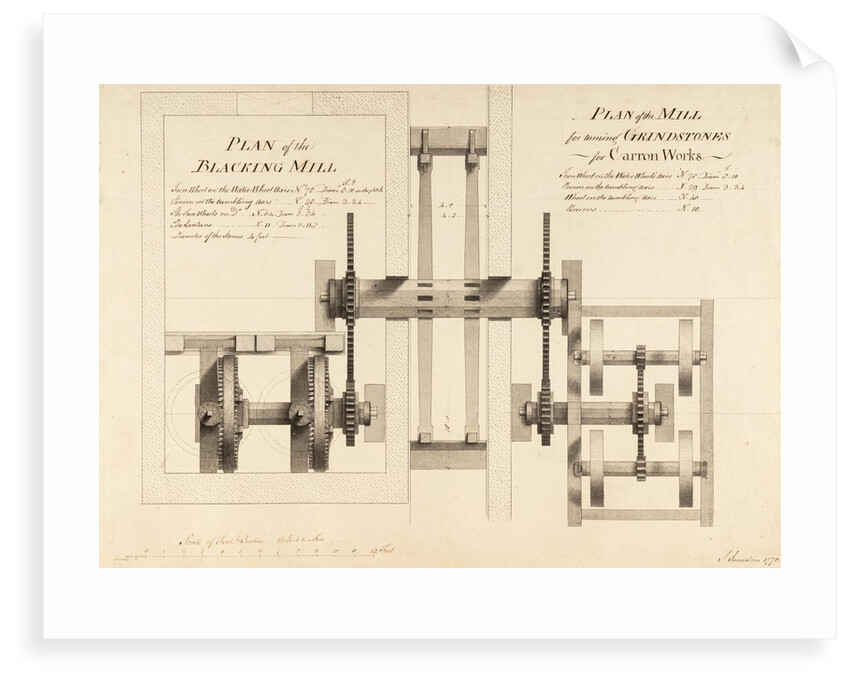

Plan of the boring mill and of the mill for turning the grindstones at Carron, Dunipace, Scotland. Both are driven by the same waterwheel, which is positioned centrally. In a scale of 1:24 inches per foot.
Signed and dated in the bottom right corner and inscribed ‘Plan of the BLACKING MILL Plan of the Mill or turning the Grindstones of Carron Works’
Original drawing from Designs by the late John Smeaton made on various occasions in the course of his employment as a Civil Engineer from the year 175[?] to 179[?], Volume 2. Containing Designs for Mills and Hydraulic Engines. Collected and arranged by John Farey, 1821.
John Smeaton (1724-1792) was a British civil engineer, he was elected a Fellow of the Royal Society in 1753.
John Farey (1766-1826) was a British geologist and surveyor, he worked on the published reports of John Smeaton’s work between 1809 and 1812.
- Image reference: RS-17785
- ©The Royal Society
