Atmospheric engine John Smeaton
Product images of Atmospheric engine
Atmospheric engine

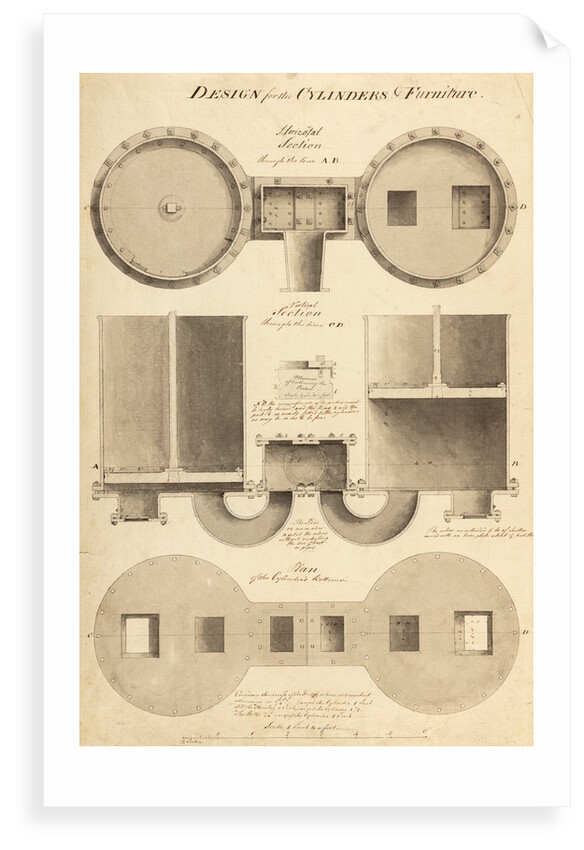

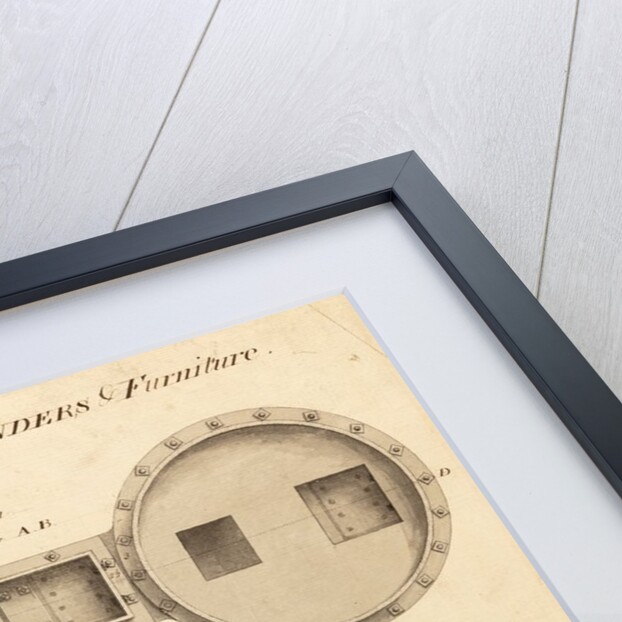

Plan and elevation of the piston cylinders from an atmospheric engine at Carron, Dunipace, Scotland. In a scale of 1:12 inches per foot.
Inscribed ‘Design for the cylinders & furniture’
Original drawing from Designs by the late John Smeaton made on various occasions in the course of his employment as a Civil Engineer from the year 175[?] to 179[?], Volume 2. Containing Designs for Mills and Hydraulic Engines. Collected and arranged by John Farey, 1821.
John Smeaton (1724-1792) was a British civil engineer, he was elected a Fellow of the Royal Society in 1753.
John Farey (1766-1826) was a British geologist and surveyor, he worked on the published reports of John Smeaton’s work between 1809 and 1812.
- Image reference: RS-17765
- ©The Royal Society
