Oil mill

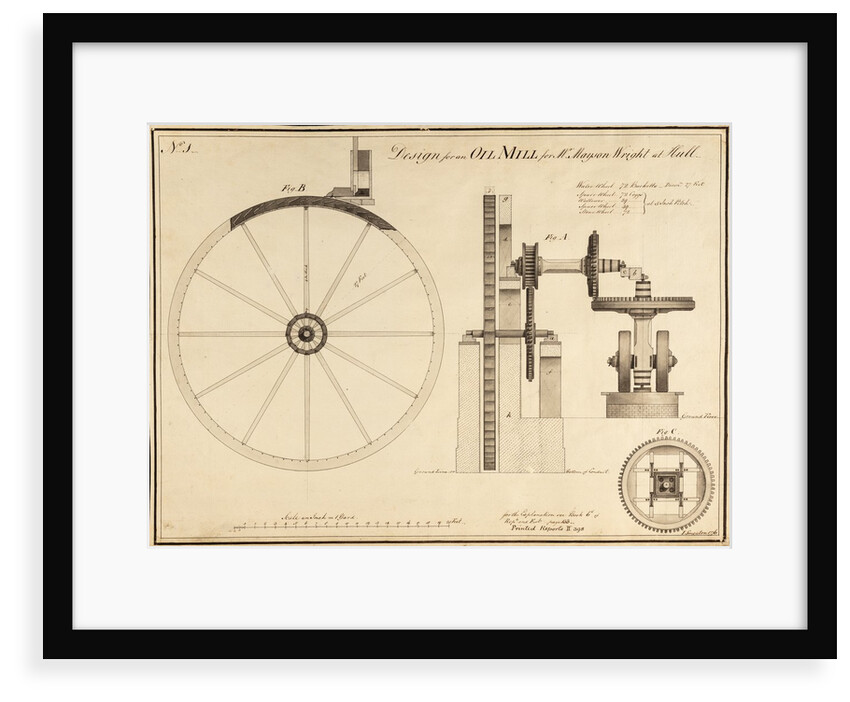

Two designs for an oil mill at Hull. Profile view of the waterwheel machinery [right as viewed], with notes identifying the spur wheel, tumbling shaft and stone wheel. Sectional view of the water wheel itself [left as viewed]. In a scale of 1:36 inches per foot.
Signed and dated in the bottom right corner and inscribed ‘Design for an OIL MILL for Mr Mayson Wright at Hull […] For the explanation see Book 6th of Repts & Ests page 133.’ Later inscribed by John Farey: ‘Printed Reports II 398’
Original drawing from Designs by the late John Smeaton made on various occasions in the course of his employment as a Civil Engineer from the year 175[?] to 179[?], Volume 2. Containing Designs for Mills and Hydraulic Engines. Collected and arranged by John Farey, 1821.
John Smeaton (1724-1792) was a British civil engineer, he was elected a Fellow of the Royal Society in 1753.
John Farey (1766-1826) was a British geologist and surveyor, he worked on the published reports of John Smeaton’s work between 1809 and 1812.
- Image reference: RS-17732
- ©The Royal Society
