Clay mill John Smeaton
Product images of Clay mill

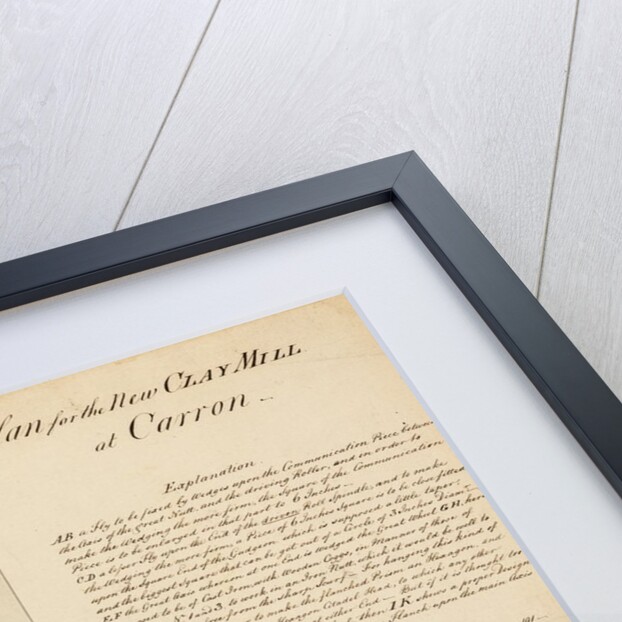

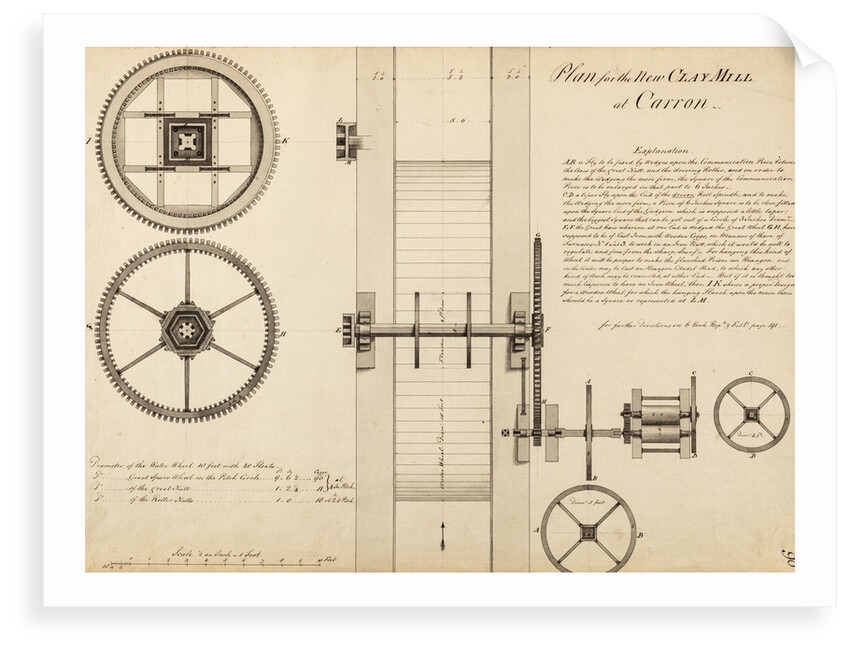

Plan for a new clay mill at Carron, in a scale of 1:24 inches per foot. Accompanying explanation [right as viewed] and sectional views of different parts, including the ‘wooden’ wheel and ‘great’ wheel [left].
Signed and dated in the bottom right corner and inscribed ‘Plan for the new CLAY MILL at Carron […] for further Directions see 6 Book Repts & Ests page 191’
Original drawing from Designs by the late John Smeaton made on various occasions in the course of his employment as a Civil Engineer from the year 175[?] to 179[?], Volume 2. Containing Designs for Mills and Hydraulic Engines. Collected and arranged by John Farey, 1821.
John Smeaton (1724-1792) was a British civil engineer, he was elected a Fellow of the Royal Society in 1753.
John Farey (1766-1826) was a British geologist and surveyor, he worked on the published reports of John Smeaton’s work between 1809 and 1812.
- Image reference: RS-17788
- ©The Royal Society
More by the artist John Smeaton.
Explore the collection Engineering and architectural prints and drawings.
